Testing the Seeed – Air quality sensor Grove – Dust sensor

Grove-Dust-Sensor // Seeed Studio

**cat meowing is our pet in the background / it is not affecting the LEDs/circuit, rather this is testing the EPA tutorial with the Grove Dust Sensor.  Each LED represents a certain threshold of particulate matter, red = a concerning density amount for long term exposure

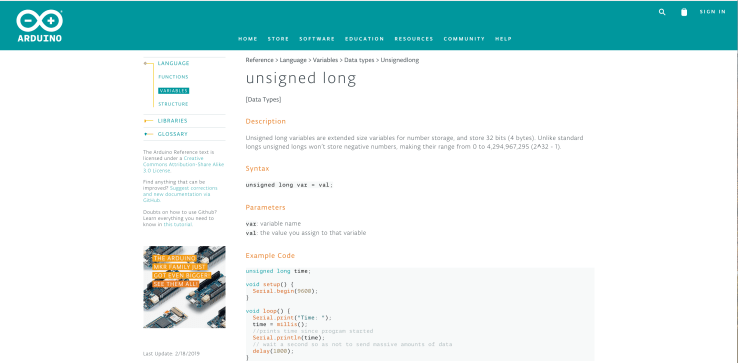

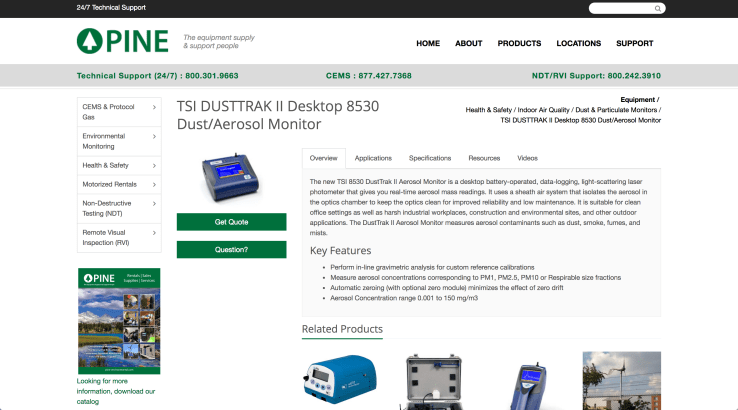

Screen Shot 2019-02-25 at 6.35.29 PM.pngReview of unsigned long:

Screen Shot 2019-02-24 at 8.01.50 PM

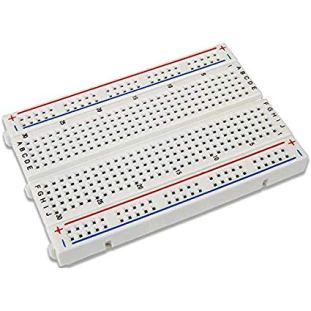

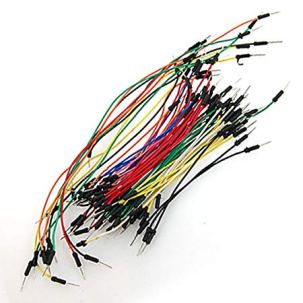

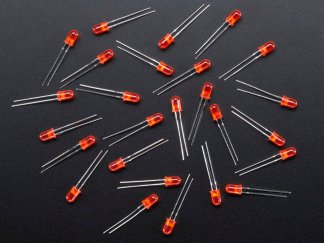

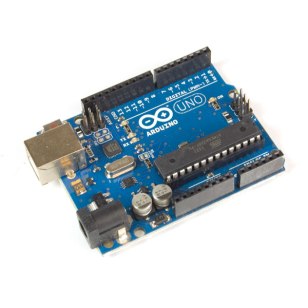

Parts needed:

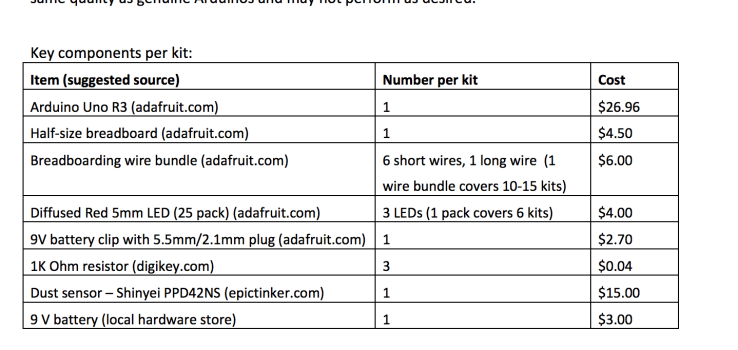

Screen Shot 2019-02-24 at 7.41.24 PM






Screen Shot 2019-02-24 at 7.20.04 PM.pngR381KSS-2.jpg







Arduino code:

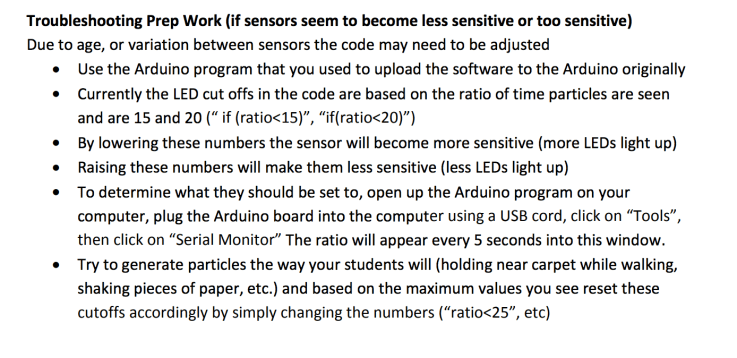

Screen Shot 2019-02-24 at 8.38.13 PM

Dust Sensor + Arduino:

int PM=8;//tell the arduino which pin you are plugging the PM sensor into

//tell the arduino which pin you are pluggin the LEDs into
int LED1=3;
int LED2=4;
int LED3=5;//could easily modify to use more LEDs
//Amount of time the sensor collects data before displaying the results in milliseconds
//For PM sensor accuracy should be 30 s or greater (accuracy not important for this application)
unsigned long sampletime_ms = 5000;//unisigned long is the type of number you will be entering lets the computer know how much space it needs to store it (think decimals, whole numbers, etc)
//Define additional Variables
unsigned long duration;
unsigned long starttime;
unsigned long lowpulseoccupancy = 0;
unsigned long timediff;
float ratio = 0;
void setup(){
  Serial.begin(9600);//start communication with computer
  //(not necessary just for error checking or code modification)
  pinMode(LED1,OUTPUT);//Define the LEDs as outputs
  pinMode(LED2,OUTPUT);
  pinMode(LED3,OUTPUT);
  pinMode(PM,INPUT);
  starttime = millis(); //set the start time of the PM measurement
  //(millis() gives the time since the program started)
  Serial.println(BUILD YOUR OWN SENSOR INITIALIZING);//Prints to the computer screen
}
void loop (){
  //duration: waits for pin to go LOW, starts timing, then waits for the pin to go HIGH and stops timing
  //Returns the length of the pulse in microseconds, gives up and returns 0 if no pulse starts within a specified time out
  //works well for pulses from 10 microseconds to 3 minutes in length
  duration = pulseIn(PM, LOW);
  lowpulseoccupancy = lowpulseoccupancy+duration; //the lowpulse occupancy is the sum of all the durations
  if ((millis()-starttime) > sampletime_ms){//following code executed if the sampletime specified has passed
    ratio = lowpulseoccupancy/(sampletime_ms*10.0); // Integer percentage 0=>100
    Serial.println(ratio); //print value to computer screen
    if (ratio<15){ //if “low concentration” PM light up 1 LED
      //- numbers selected based on experimentation not actual concentration values
      digitalWrite(LED1, HIGH);
      digitalWrite(LED2, LOW);
      digitalWrite(LED3, LOW);
    }
    else if(ratio<20){ //if “moderate concentration” PM light up 2 LEDs
      digitalWrite(LED1, HIGH);
      digitalWrite(LED2, HIGH);
      digitalWrite(LED3,LOW);
    }
    else{//”high concentration” light up all 3 LEDs
      digitalWrite(LED1, HIGH);
      digitalWrite(LED2, HIGH);
      digitalWrite(LED3, HIGH);
    }
    lowpulseoccupancy = 0;//reset lowpulse
    starttime=millis();//reset the start time of this PM measurement
  }
}
Testing Neopixels
